SMD S.A.W. RESONATORS
SMD Type Of S.A.W. Resonators For Alarm And Remote Control

1. One-Port Resonator
Center Frequency
(MHz)
Electronic Characteristics
Package Choice
224
240
260
265
Frequency Tolerance:
± 75 / ± 150 / ± 250kHz

Insertion Loss: 1.5dB typ.

Unloaded Q: 12,000 typ.

50 ohm Loaded Q: 2,000 typ.

Operating Temperature:
-10°C ... +60°C

Storage Temperature:
-45°C ... +85°C
QCC8C, QCC8B, QCC8D, QCC4A, DCC6, DCC6C,
F-11-SMD
295
303.75
303.825
303.875
304.3
305.675
310
311
311.625
312
314.5
315
315.5
316.5
316.65
316.8
318
319.5
330
333
335
340
345
350
351
359
360
380
384.05
390
395
395.5
396
403.55
407.3
418
423
423.22
426.55
430.5
430.65
433.42
433.92
434.42
441.2
447.699
479.5
567
669.5
677.5
680
720
800
809
824.25
852
857.65
867.84
868
868.3
868.35
877
902
902.3
910
912
913.5
915
916
916.5
925
934
939
972
980
etc.

2. Two-Port Resonator
Center Frequency
(MHz)
Electronic Characteristics
Package Choice
Phase Shift: 180°
Frequency Tolerance:
± 75 / ± 150 / ± 250kHz

Insertion Loss: 6dB typ.

Unloaded Q: 13,000 typ.

50 ohm Loaded Q: 6,000 typ.

Operating Temperature:
-10°C ... +60°C

Storage Temperature:
-45°C ... +85°C
QCC8C, QCC8B, QCC8D, QCC4A, DCC6, DCC6C
303.825
315
360
380
384.05
403.55
418
423.22
433.92
479.5
780
824.25
854
868
873
906
913.5
915
920
923
934
939
950
1030
1090
etc.
Phase Shift: 0°
669.5
677.5
800
915
etc.

3. Package Dimension

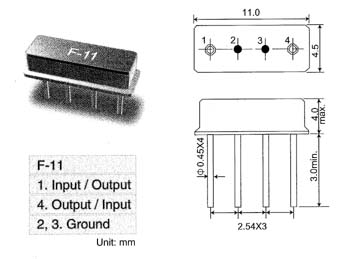

F-11

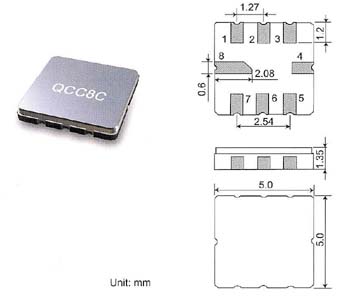

QCC8C

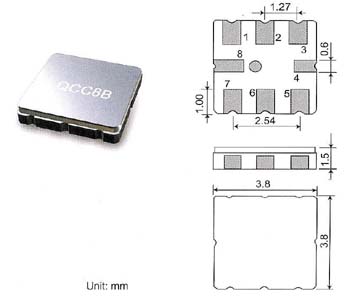

QCC8B

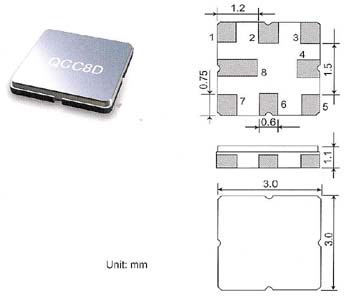

QCC8D

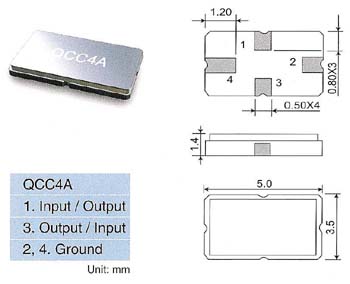

QCC4A

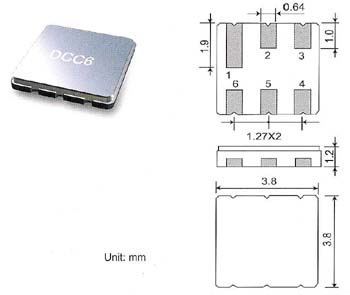

DCC6

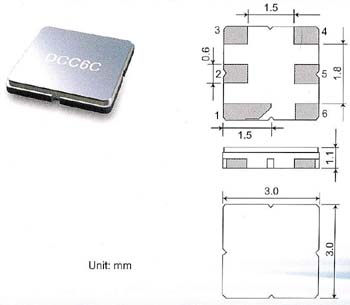

QCC6C

4. Test Circuit
A. QCC8C
B. QCC4A
C. F-11-SMD

5. Typical Application Circuit
I. Telecontrol Circuitry

A. QCC8C

B. QCC4A

C. F-11-SMD

II. Local Oscillator Application

A. QCC8C

B. QCC4A

C. F-11-SMD
